Atik 383L+
- Low read-noise circuits
- Enables faint details to be detected
- Scientific grade sensor
Overview

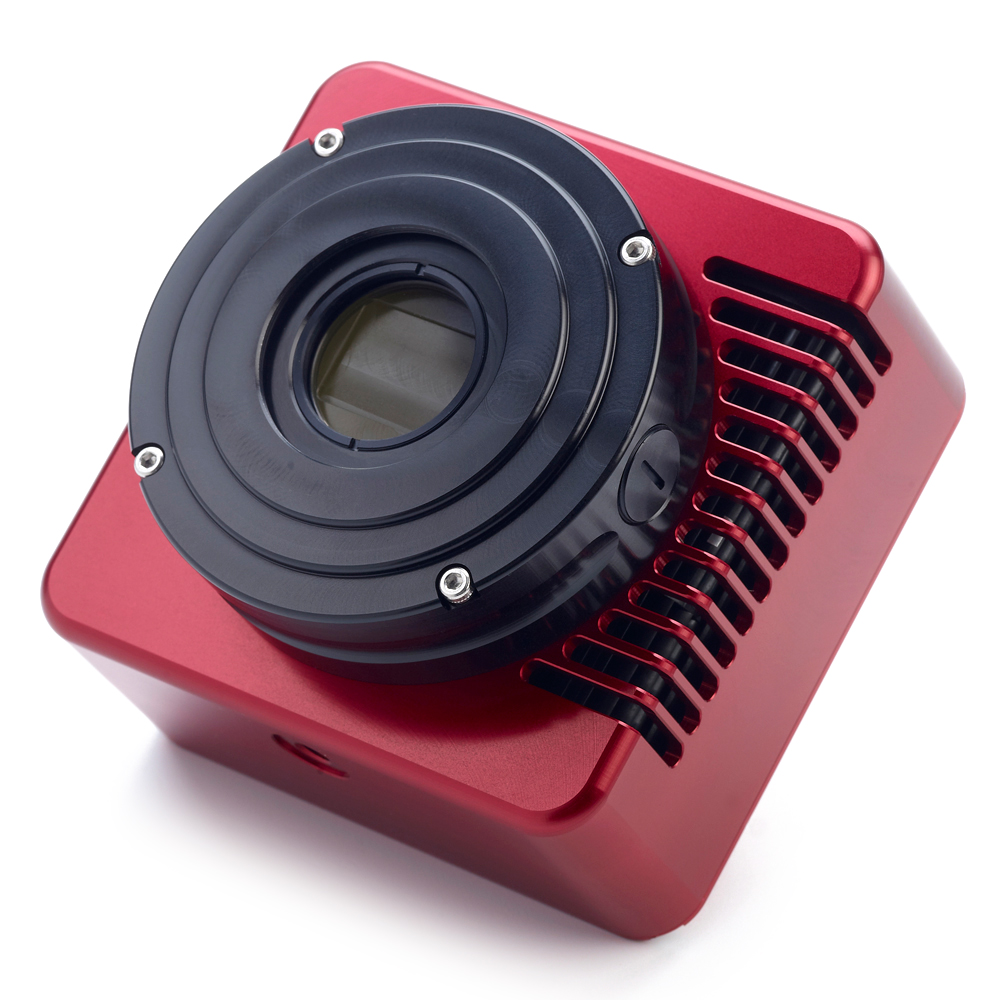

The Atik 383L + features the Kodak KAF-8300 CCD with a huge number of good-sized pixels. This sensor has redefined mid-range astro-imaging, making multi-megapixel cooled cameras much more accessible. Atik prides itself on providing cameras offering the very highest deep sky imaging quality at a reasonable cost.
Specifications Download Datasheet
| Image Sensor | KAF-8300 17.6mm x 13.52m |
|---|---|
| Resolution | 3354 x 2529 |
| Pixel Pitch | 5.40µm |
| Full Well | ~26,000 e- |
| Read Noise | Typical 7e- |
| Dark Current Noise at camera set point |
~0.1 electrons/second at -10° |
| Set Point Cooling at ambient of 20oC |
∆T = -40˚C max |
| Mount Type | M42 x 0.75 |
| ADC | 16 bit |
| Backfocus Distance | 17mm ±0.5 |
| Exposure Range | 200ms - unlimited |
