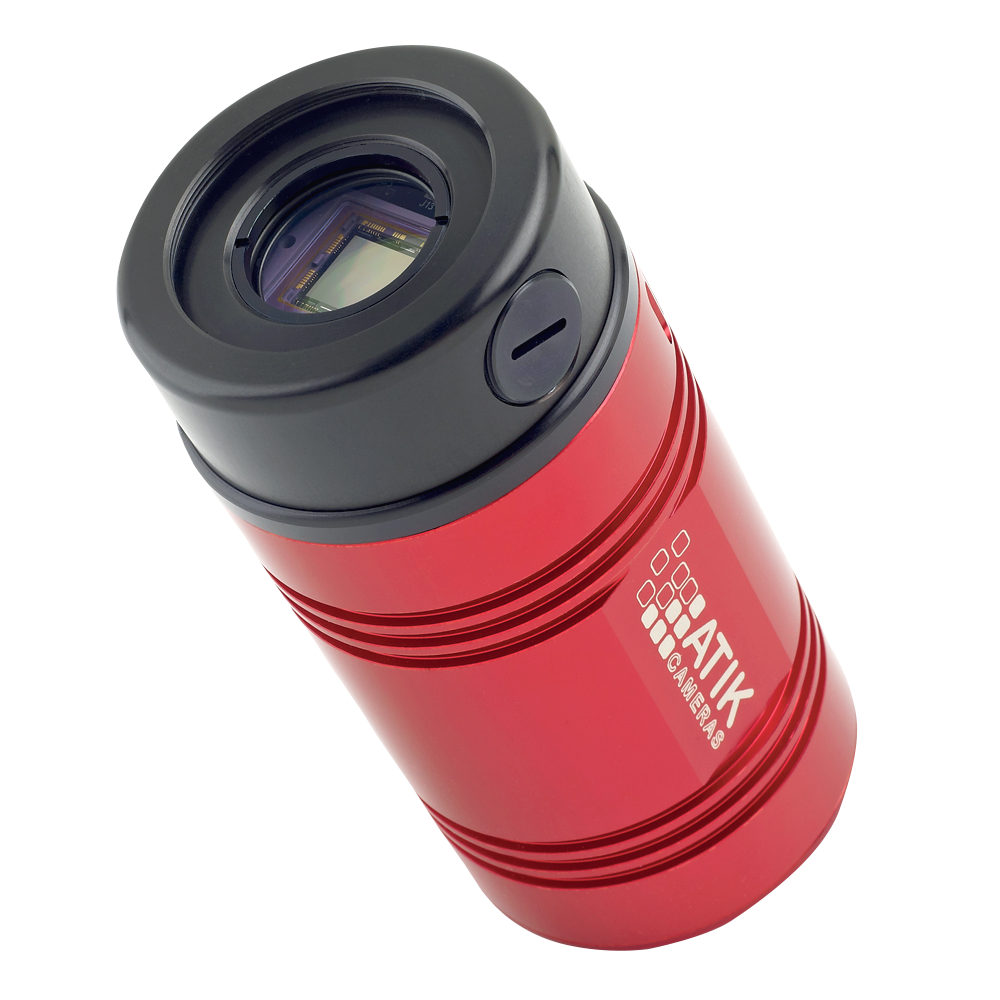

Atik 414EX

Overview

The Atik 414EX’s 6,45 µm pixel size not only adds to its exceptional sensitivity, but also makes it suitable across a broad range of telescopes, from short focal lengths with a reducer right up to longer focal lengths not catered for in a small pixel camera. The incredible Sony ICX825 EXview sensor combined with our high performance 4-Series design really does set the standard for cooled CCD cameras and can also be used for OEM applications.

Specifications

Image Sensor Sony ICX825 CCD sensor
Resolution 1391 x 1039
Pixel Pitch 6.45 µm
Full Well ~18,000e-
Read Noise 4e- (typical)
Dark Current Noise
at camera set point
~0.001 electrons/second at -10°C
Set Point Cooling
at ambient of 20oC
Thermoelectric set point with max ΔT=>-30°C
ADC 16 bit
Backfocus Distance 13mm ±0.5
Exposure Range 1 ms - unlimited
