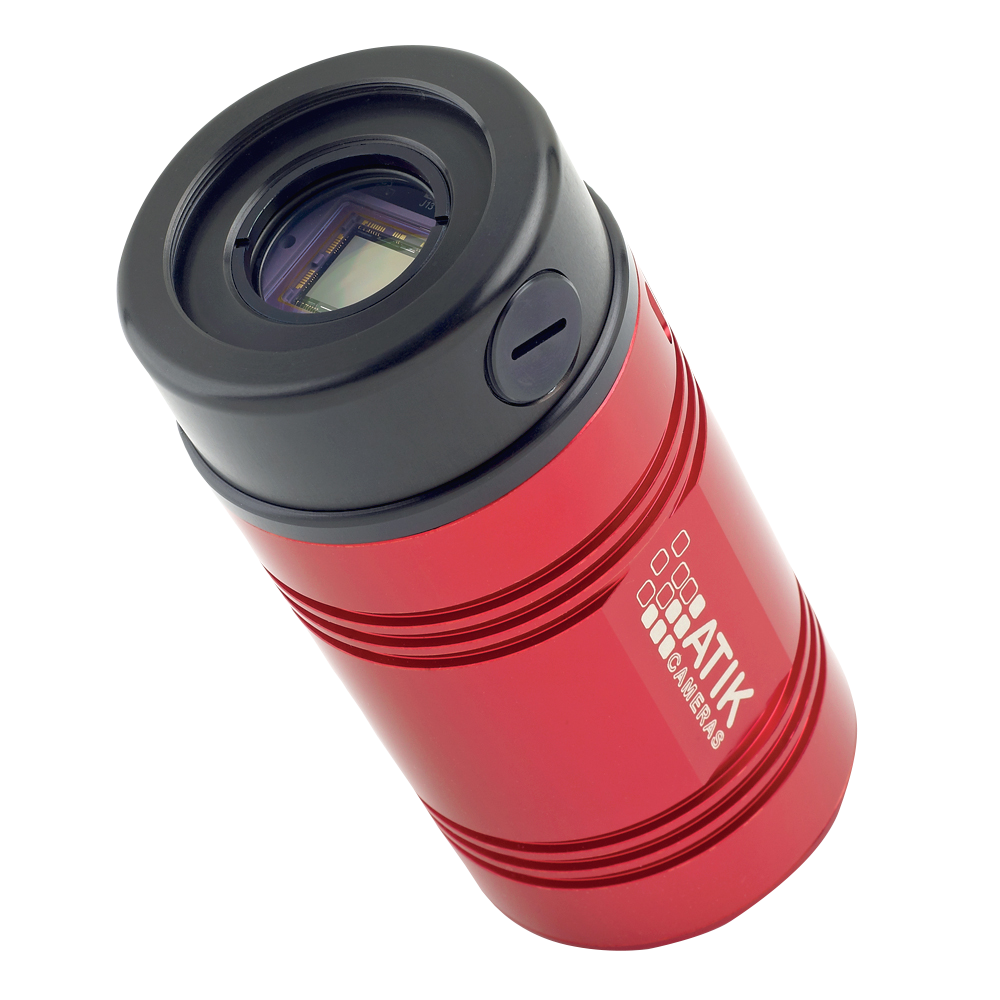

Atik 460EX
- Sony ICX694 CCD sensor
- Tough housing suitable for Astrophotography
- Extremely low dark current noise
Overview
The Atik 460EX is renowned for its perfect balance of sensitivity and resolution. Utilising a Sony ICX694 sensor complete with EXview technology for outstanding Quantum Efficiency and generous sky coverage, the 460EX is also one of the most versatile astrophotography cameras around, well-suited to a large range of telescopes ranging from the amateur to the professional.
The 460EX is ideal for those looking to invest in a camera that will provide uncompromising performance, no matter where your deep-sky imaging journey may take you.
Specifications Download Datasheet
| Image Sensor | Sony ICX694 /5 CCD sensor |
|---|---|
| Resolution | 2749 x 2199 |
| Pixel Pitch | 4.54 µm |
| Full Well | ~18,000 e- |
| Read Noise | 5e- (typical) |
| Dark Current Noise at camera set point |
~0.0004 electrons/second at -10° |
| Set Point Cooling at ambient of 20oC |
-25°C |
| ADC | 16 bit |
| Backfocus Distance | 13mm ±0.5 |
| Exposure Range | 1ms - unlimited |
