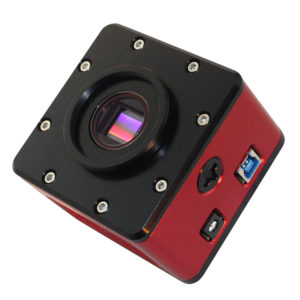

ACIS 2.4
- 2.4 MP Cooled CMOS Camera
- Capable of exposures of 20 minutes
- 5.86 μm pixel pitch
- 1920 x 1200 resolution
Overview
The ACIS 2.4 is a highly flexible cooled CMOS camera ideal for applications that require high sensitivity with larger pixels at exposure times in the region of 20 minutes or more. The design is optimised to maintain a suitable level of cooling without compromising on the housing size resulting in a truly versatile camera in a compact package.
Specifications
| Image Sensor | Sony IMX249 (Mono or Colour) |
|---|---|
| Resolution | 1920 x 1200 |
| Pixel Pitch | 5.86 μm |
| Full Well | 33,000 e- |
| Read Noise | 3 e- |
| Dark Current Noise at camera set point |
0.03 e-/p/s |
| Set Point Cooling at ambient of 20oC |
-15 °C |
| Mount Type | M42 x 0,75 or C-Mount |
| ADC | 12 bit |
| Backfocus Distance | 12.5 mm ±0.5 |
| Reading Mode | Global shutter CMOS sensor |
| Exposure Range | 1 ms to 1 hour |
Key Features
Compact housing
The ASIS 12.3 measures just 82mm x 82mm x 64mm meaning it can be conveniently placed in the tightest spaces without compromising the imaging performance.
