12 K
↳ Easy integration for OEM systems
↳ High sensitivity
Designed for precision imaging in the life sciences, our 12K high-performance camera brings together cutting-edge CMOS technology and scientific-grade stability. It delivers stunning resolution, ultra-low noise, and exceptional sensitivity – perfect for capturing even the faintest fluorescence or luminescence signals.
Engineered for OEM life sciences instruments, this camera combines scientific-grade imaging with integration-ready design. Its Sony IMX571 CMOS sensor provides 26-megapixel resolution, ultra-low read noise (1.2 e⁻), and a 16-bit ADC, ensuring superior sensitivity and quantitative accuracy for fluorescence and chemiluminescence.
A thermoelectric cooling system achieves 35°C below ambient, suppressing dark current to 0.0008 e⁻/s/pixel for long, stable exposures. The result: clean and consistent imaging performance in low-light or time-lapse applications. The 3.76 μm pixel pitch and 23.5 × 15.7 mm sensor area deliver a large field of view, ideal for microscopy and high-throughput analysis.

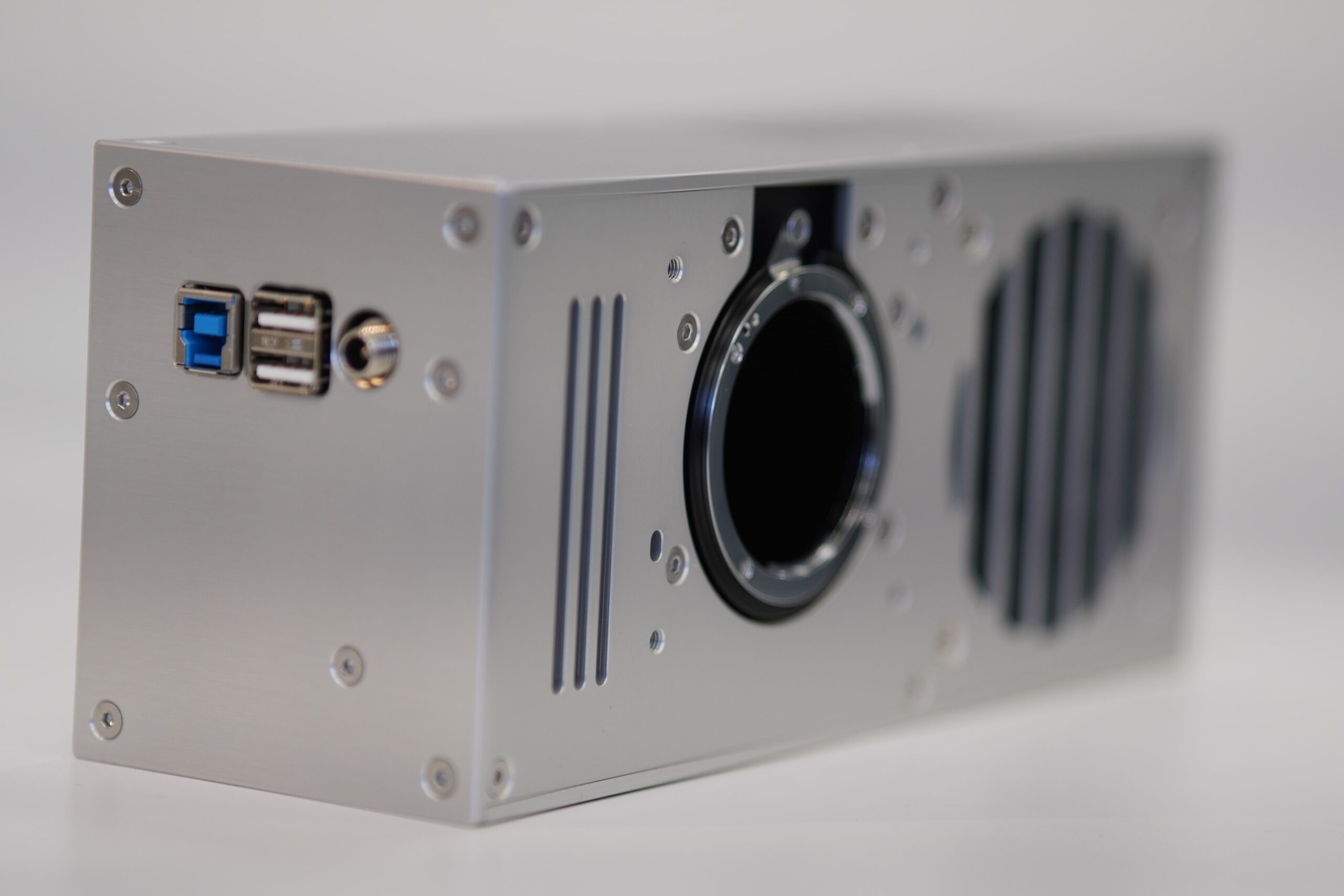

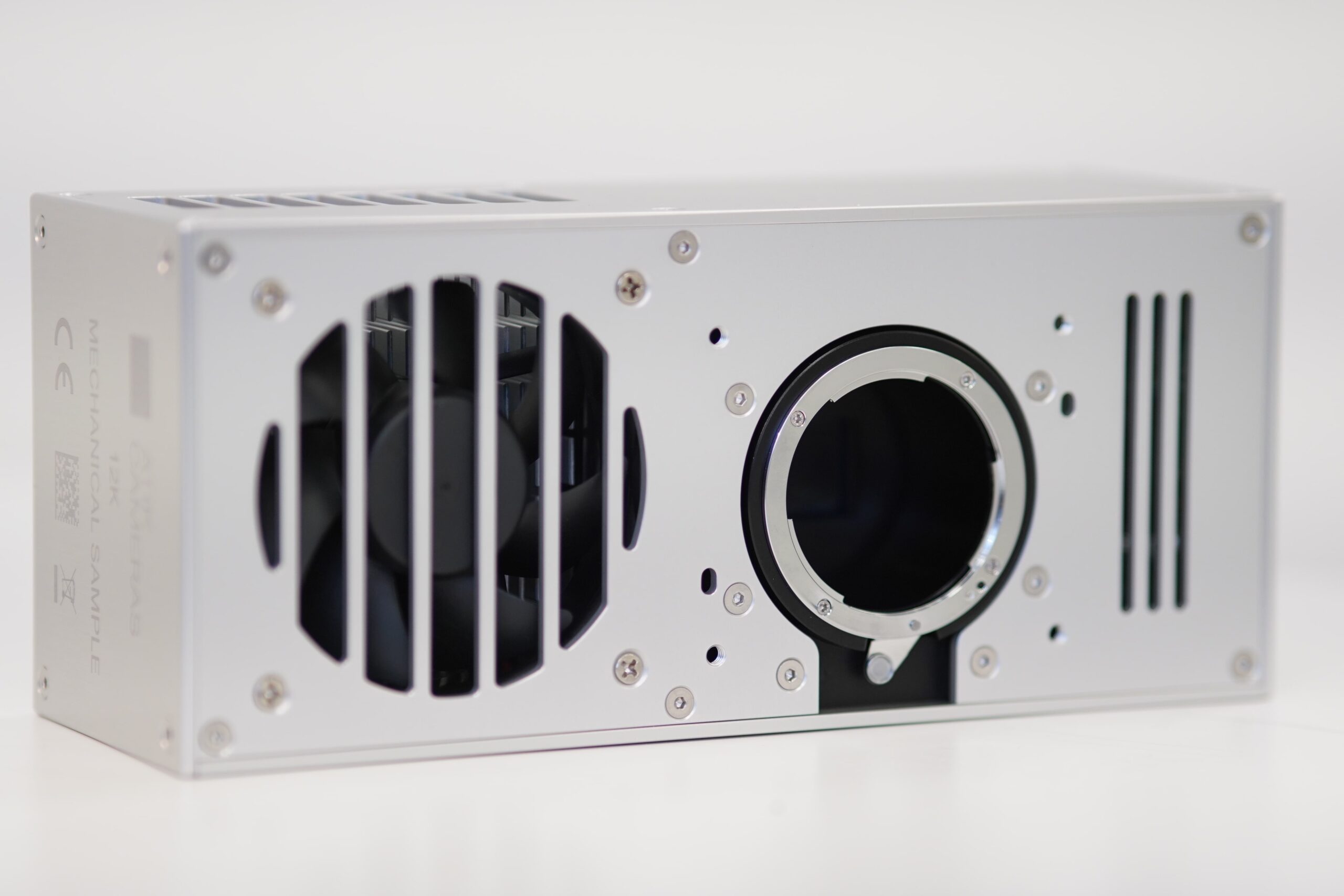

Built for easy system integration, it features a standard Nikon F-mount and compact form factor suitable for benchtop or embedded systems. With exceptional image quality, low power consumption, and proven thermal stability, this camera provides OEM developers with a reliable imaging engine for next-generation life sciences instruments.
IMAGE SENSOR
Sony IMX571 CMOS
(Mono/Color)
RESOLUTION
6252 × 4176
SENSOR DIAGONAL (EFFECTIVE PIXELS)
28.3 mm
(23.5 mm x 15.7 mm)
PIXEL SIZE
3.76 μm
FULL WELL CAPACITY
51 000 e-
READ NOISE
1.2 e- (High Gain Mode)
3.6 e- (Low Gain Mode)
DARK CURRENT
0.0008 e-/p/s at -15°C
COOLING CAPACITY
35°C below room temperature
MOUNT TYPE
Nikon F-mount
ADC
16 bit
BACK FOCUS DISTANCE
47.7 mm ±0.5
READING MODE
Electronic Rolling Shutter
EXPOSURE RANGE
0.001s to 24 hours
FRAME RATE
4 FPS
MAXIMUM CURRENT CONSUMPTION
2.4 A
POWER SUPPLY
12VDC 5A
Technical Drawing:12k
