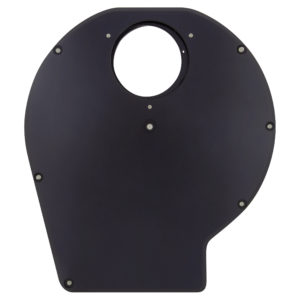

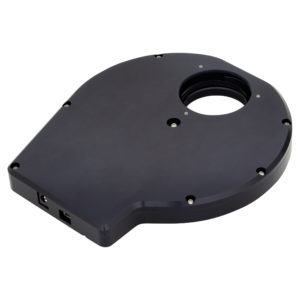

Atik EFW2.2 Filter Wheel

The Atik EFW2.2 electronic filter wheel is available in 4 formats supporting filter sizes of 1.25″, 2″, 36mm and 50.8mm. The carousels are interchangeable and are available separately as accessories. An electronic filter wheel allows you to automate your imaging.



Product codes
1.25″ filter wheel: ATK0177FW
Unmounted 36mm filter wheel: ATK0176FW
2″ filter wheel: ATK0175FW
Unmounted 50.8mm filter wheel: ATK0174FW

1.25″ carousel: ATK0178C
36mm carousel: ATK0180
2″ carousel: ATK0179C
50.8mm carousel: ATK0181

Find a Dealer

Electronic Filter Wheel to add colour to your images


An upgrade on it's predecessor, The Atik EFW2.2 features a new mechanical location system for indexing the filter. This ensures that filters are always in precisely the same position which is of great benefit for flat field framing. Ensuring that flat field frames display exactly the same optical characteristics is essential to ensure that anomalies such as dust can be handled and removed accurately.

The EFW2.2 also features a slick design, with a slim and lightweight profile. For example, the distance between any Atik camera and the wheel itself is 0mm, while still maintaining the possibility of rotating the camera to any desired position.

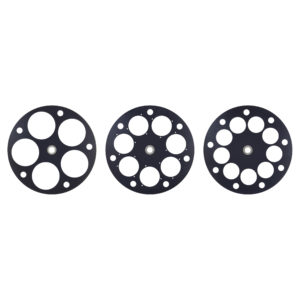

Filter disk options include 5x50.8mm, 5x2” mounted, 7x36mm and 9x1.25” mounted. Regarding software, the EFW2.2 has an ASCOM compliant driver, so that any compliant software can control it. Additionally, the EFW2.2 can be controlled using our Artemis Capture software, for easy, simple and efficient operation.

The EFW2.2 is supplied with your choice of carousel and separate carousels are also available to allow users to change.

Technical Specification

  • Interface: Mini USB
  • Power: 12v DC 0.3A (max)
  • Weight: approx. 500 gr
  • Total extra backfocus to accommodate the EFW2.2 is only 22mm.

System Requirements

  • Pentium III PC with 128MB RAM
  • Windows 10/Win8
  • CD-ROM drive and USB 2.0 port

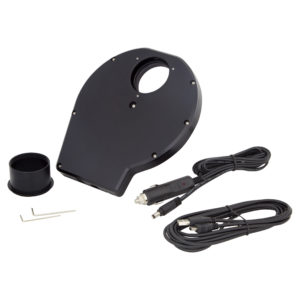

What's in the box?

  • EFW2.2 body with your choice of filter disk
  • 2" adapter
  • Hex key kit
  • Screws, plastic washers and o-rings (with specific disk options)
  • 3-metre USB cable
  • 1.8-metre battery power connector
  • CD-ROM with drivers, software and Manuals (PDF)
  • User's Manual (paper)

Please note - when using the 2" model of the EFW2.2 with the Atik 16200, an additional ATK 0081 M54 adaptor is required to couple the wheel to the camera.

Important!  When ordering a carousel just the carousel is supplied.  You will need to have bought an EFW2.2 previously to use with it.
