ChemiMOS 9
↳ Exceptionally low dark current
↳ No downtime for recalibration
The ChemiMOS 9 is a compact scientific CMOS camera designed for labs and OEM systems that demand repeatable low-noise data. At its core is Sony’s IMX533 (mono or color), a 3011 × 3011 square sensor with 3.76 μm pixels and a 15.968 mm diagonal (11.3 × 11.3 mm effective area).
Where many cameras force you to choose between footprint and flexibility, ChemiMOS 9 offers both: the standard model keeps the form factor lean for tight instruments, while ChemiMOS 9FW integrates a motorized filter wheel inside the body for turnkey multi-channel fluorescence or multispectral work – no extra opto-mechanics, no alignment headaches, and a single, stable optical path.
Clean backgrounds are everything in low-signal experiments. ChemiMOS 9’s sensor architecture is engineered for zero amp glow and very low read noise: 1.6 e⁻ (High Gain Mode) or 3.6 e⁻ (Low Gain Mode). Pair that with a dark current of just 0.0005 e⁻/px/s at −20 °C and you get ultra-clean frames even when exposures stretch to minutes or hours. For chemiluminescence, bioluminescence, weak fluorescence, or faint-object imaging, that means less background subtraction, fewer retakes, and higher statistical confidence per frame.
With >50,000 e⁻ full-well capacity, ChemiMOS 9 comfortably accommodates bright structures while preserving dim details, maintaining a deep dynamic range that is critical for quantitative science. The camera runs a 14-bit ADC and outputs in a 16-bit image mode, preserving compatibility with scientific file formats and analysis pipelines while safeguarding intensity precision for measurement workflows.
The thermoelectric system provides a 35 °C delta below ambient, keeping the sensor in a low-noise regime. Because dark current scales with temperature, holding the die cool and stable directly improves repeatability in long-duration and time-lapse experiments.
The camera supports an exposure range from 0.001 s to 24 hours with electronic rolling shutter. You can tune for fast snapshots (e.g., bright-field, alignment, and focusing) or for deep integrations (e.g., chemiluminescence and weak fluorescence) using the same instrument. A full-frame 12 FPS rate provides responsive live view, rapid focus checks, and efficient acquisition for dynamic protocols—without sacrificing the noise performance you need for final data.
IMAGE SENSOR
Sony IMX533 CMOS
(Mono/Color)
RESOLUTION
3011 × 3011
SENSOR DIAGONAL (EFFECTIVE PIXELS)
15.968 mm
(11.3 mm x 11.3 mm)
PIXEL SIZE
3.76 μm
FULL WELL CAPACITY
>50 000 e-
READ NOISE
1.6 e- (High Gain Mode)
3.6 e- (Low Gain Mode)
DARK CURRENT
0.0005 e-/p/s at -20°C
COOLING CAPACITY
35°C below room temperature
MOUNT TYPE
M42 × 0.75 (T-mount)
or 1ˮ- 32 UN 2A (C-Mount)
ADC
14 bit
(with 16 bit image mode)
BACK FOCUS DISTANCE
17.5 mm ±0.5
READING MODE
Electronic Rolling Shutter
EXPOSURE RANGE
0.001s to 24 hours
FRAME RATE
12 FPS
MAXIMUM CURRENT CONSUMPTION
1.9 A
POWER SUPPLY
12VDC 5A

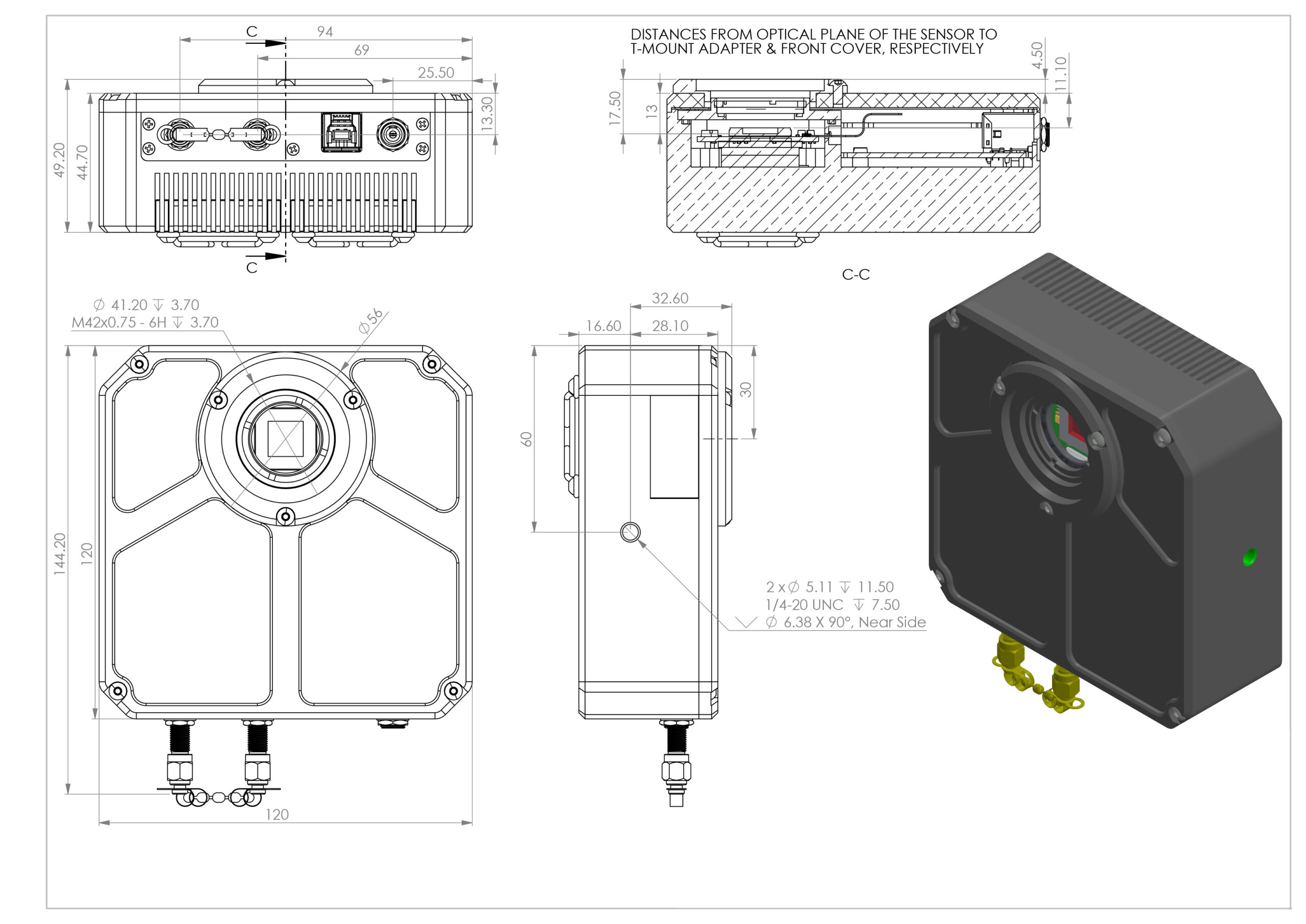

Technical Drawing:
ChemiMOS 9
