A deep well, high sensitivity CCD scientific camera suitable for applications such as chemiluminescence, fluorescence, spectroscopy, microscopy, and bioluminescence.

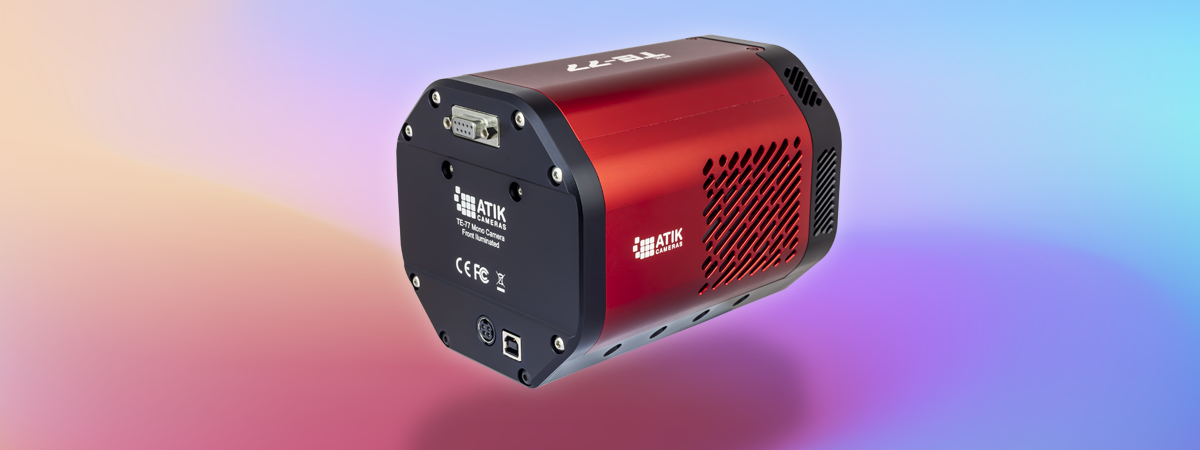

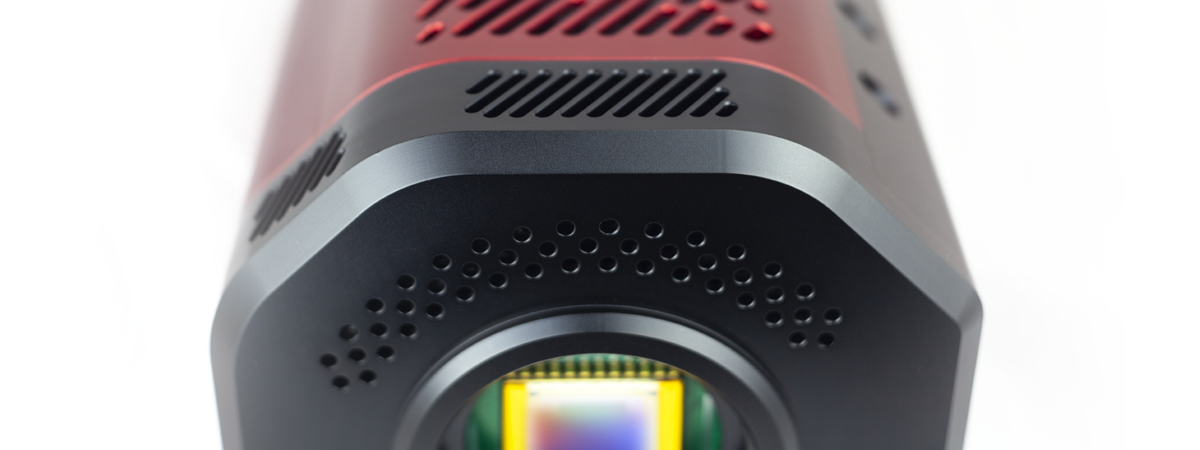

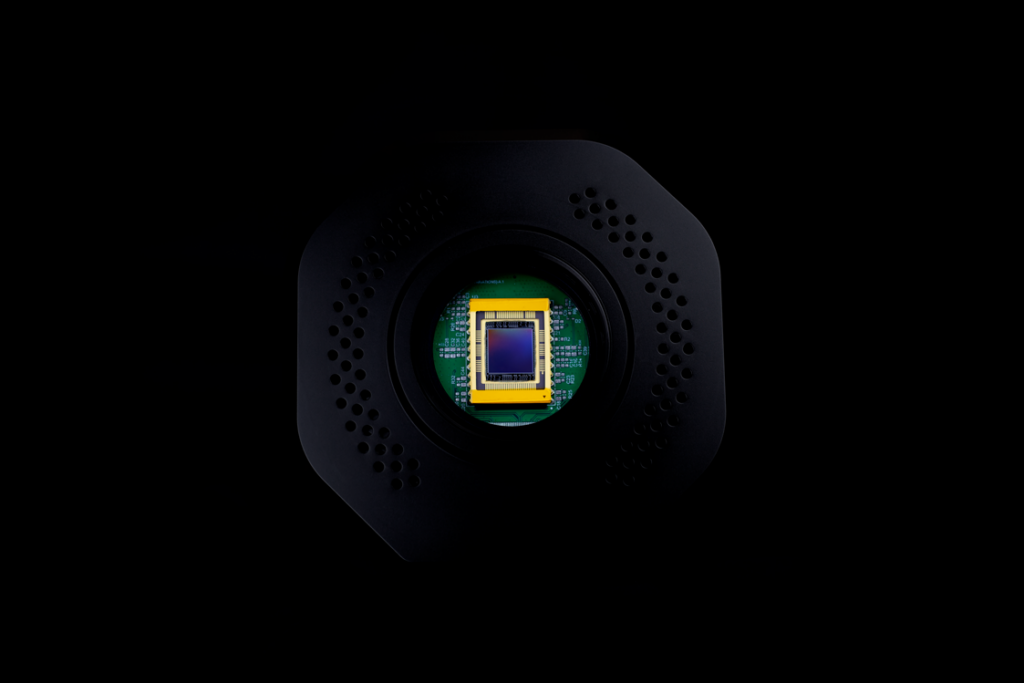

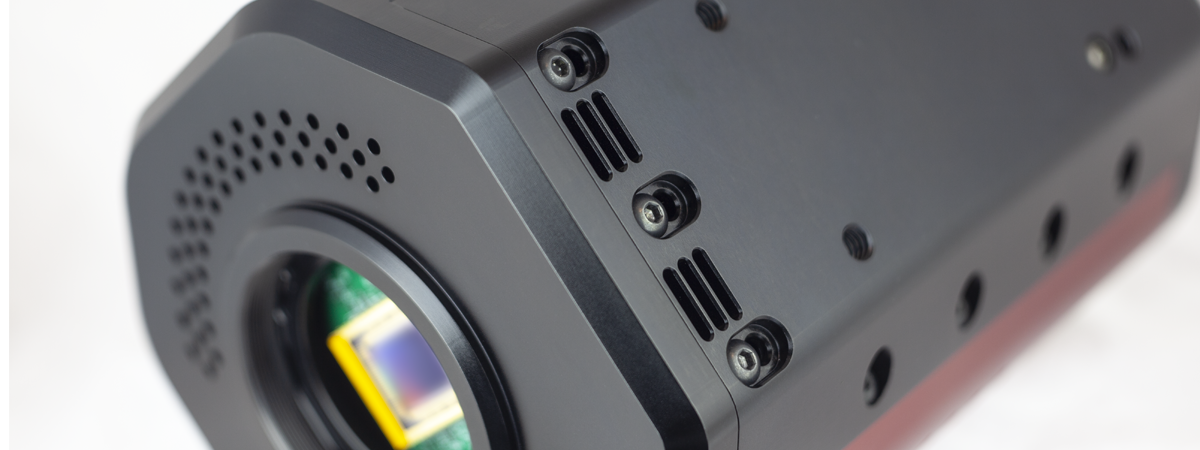

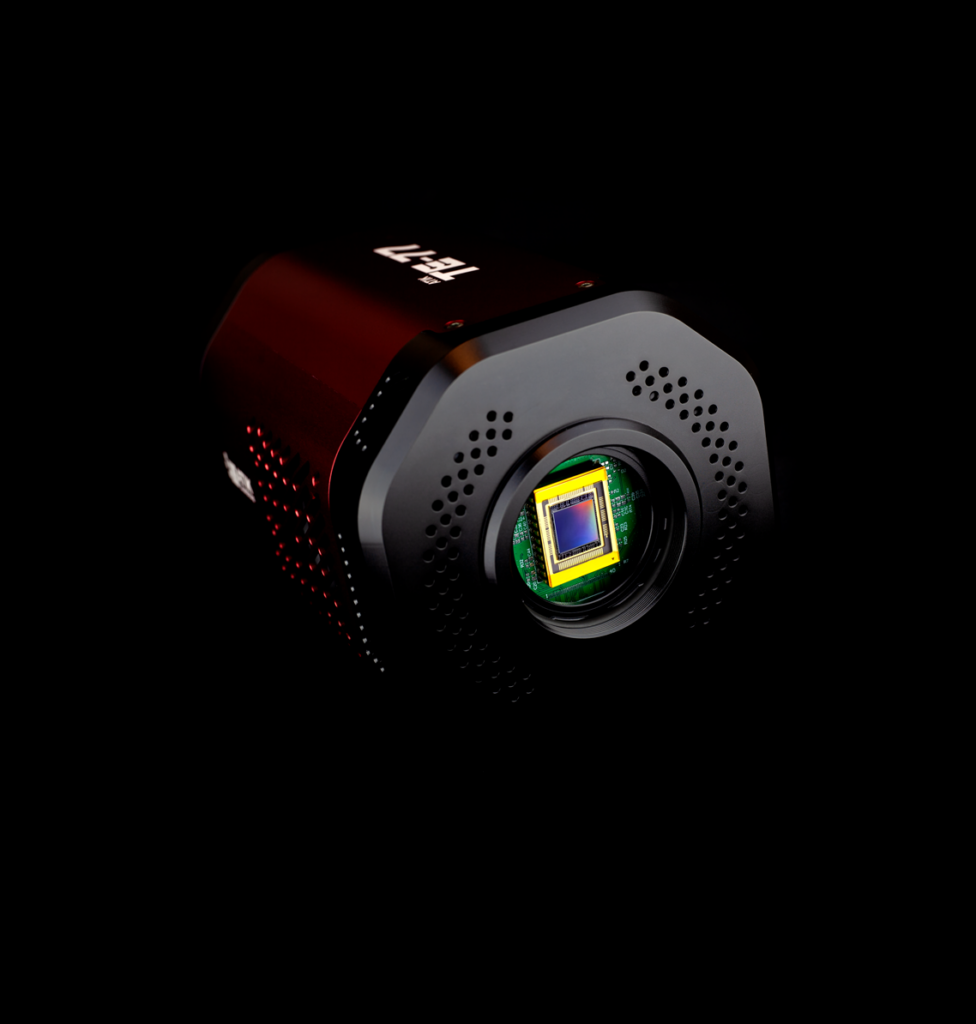

TE-77

The TE-77, demonstrates the power and versatility of charged coupled device technology.

With an increased cooling delta, this argon filled camera achieves extremely low read noise, enabling it to detect even the smallest signals. Additionally, the extremely deep full well depth results in much lower saturation when imaging, which reveals exceptional detail.

This advanced sensor from Teledyne e2v is perfectly complemented by Atik’s design and engineering. This camera provides excellent performance in the most demanding of applications such as chemiluminescence, fluorescence, spectroscopy, microscopy, and bioluminescence due to its large pixels, low noise characteristics, and excellent QE.

There is also the option to integrate a 45mm high speed bi-stable shutter with an opening time of 20.0 milliseconds. With the assistance of our in-house engineering department, the TE-77 can be fully customized to suit your specifications of specific OEM applications

The TE-77 camera is built to the highest standards in our own ISO 9001 certified production facility and is available with an extensive software development kit.

The Atik TE-77 is designed for scientific applications needing a high quality deep-well camera. With optimized cooling and advanced features, it’s the perfect tool for chemiluminescence, fluorescence, spectroscopy, microscopy and bioluminescence applications. It features an ultra sensitive CCD with on-board 16 bit or 18 bit analog to digital conversion allowing it to reach short exposures. The very low noise electronics ensure optimum image quality.

Deep Well CCD Camera for High Sensitivity Imaging

For Astronomy

The Atik TE-77 Camera is an ideal choice for those looking for a powerful, versatile imaging telescope instrument. Its advanced cooling performance allows for accurate and noise-free long-exposure shots of faint celestial objects. With its dual-stage thermoelectric cooler keeping temperatures stabilized up to -40° Celsius at ambient temperature of 20 Celsius in just minutes and requiring little power draw.

For Spectroscopy

Because of its high sensitivity, low noise, and efficient download rates, the Atik TE-77 camera is ideal for spectroscopy science imaging. The e2v CCD77 CCD sensor provides instant, clear images thanks to its 24 µm pixel size. An optional shutter built into the camera can also reduce distortion caused by short exposure times, further improving image quality.

For Chemiluminescence

The ATIK TE-77 CCD camera is the perfect choice for chemiluminescence imaging due to its choice of either back-illuminated front illuminated full-frame scientific-grade sensor and a full range of adjustable settings for capturing even the faintest signals. It also offers efficient download times to ensure that no signals are missed.

For Microscopy

The Atik TE-77 Camera offers a range of benefits specifically tailored to meet the needs of microscopy science imaging. This camera is ideal for life science applications due low light sensitivity, and efficient download rates. Its low noise performance ensures clear, detailed images even in dark environments. Moreover, this camera is designed with a large dynamic range that allows it to capture images with high contrast and detail.

For Fluorescence Imaging

The ATIK TE-77 camera is an excellent choice for fluorescence imaging science, as it offers very high sensitivity and low noise, allowing researchers to capture finely detailed images with exact accuracy. In addition, the camera’s efficient download rates allow researchers to quickly view and analyze moving structures more accurately.

Specifications Download Datasheet

Image Sensor	e2v CCD77 front or back illuminated CCD
Resolution	512 x 512
Pixel Pitch	24 μm
Sensor Size	12.3 x 12.3 mm
Full Well	300,000 e-
Read Noise	8e- (provisional)
Set Point Cooling at ambient of 20^oC	-40°C
Mount Type	M54 x 0.75
ADC	16 or 18 bit
Backfocus Distance	without shutter: 11.9mm ±0.5 with shutter: 16.9mm ±0.5
Reading Mode	Full frame CCD with optional physical shutter
Exposure Range	10 ms - unlimited
