10 GbE Camera
XGbE-26
The second model of the XGbE Series. Operating as a native 10 GbE IP device, it integrates effortlessly into SSA/SDA and scientific network infrastructures. Engineered for high-density, multi-camera installations, it ensures reliable performance and absolute synchronization across complex imaging networks at an optimized scale.
Built around the Sony IMX571 APS-C CMOS sensor, the XGbE-26 delivers high-resolution 6248 × 4176 imagery with the bandwidth headroom to stream uncompressed frames across distributed observation networks.
- SFP+: Ethernet connectivity up to 10 Gb/s
- Network-based architecture

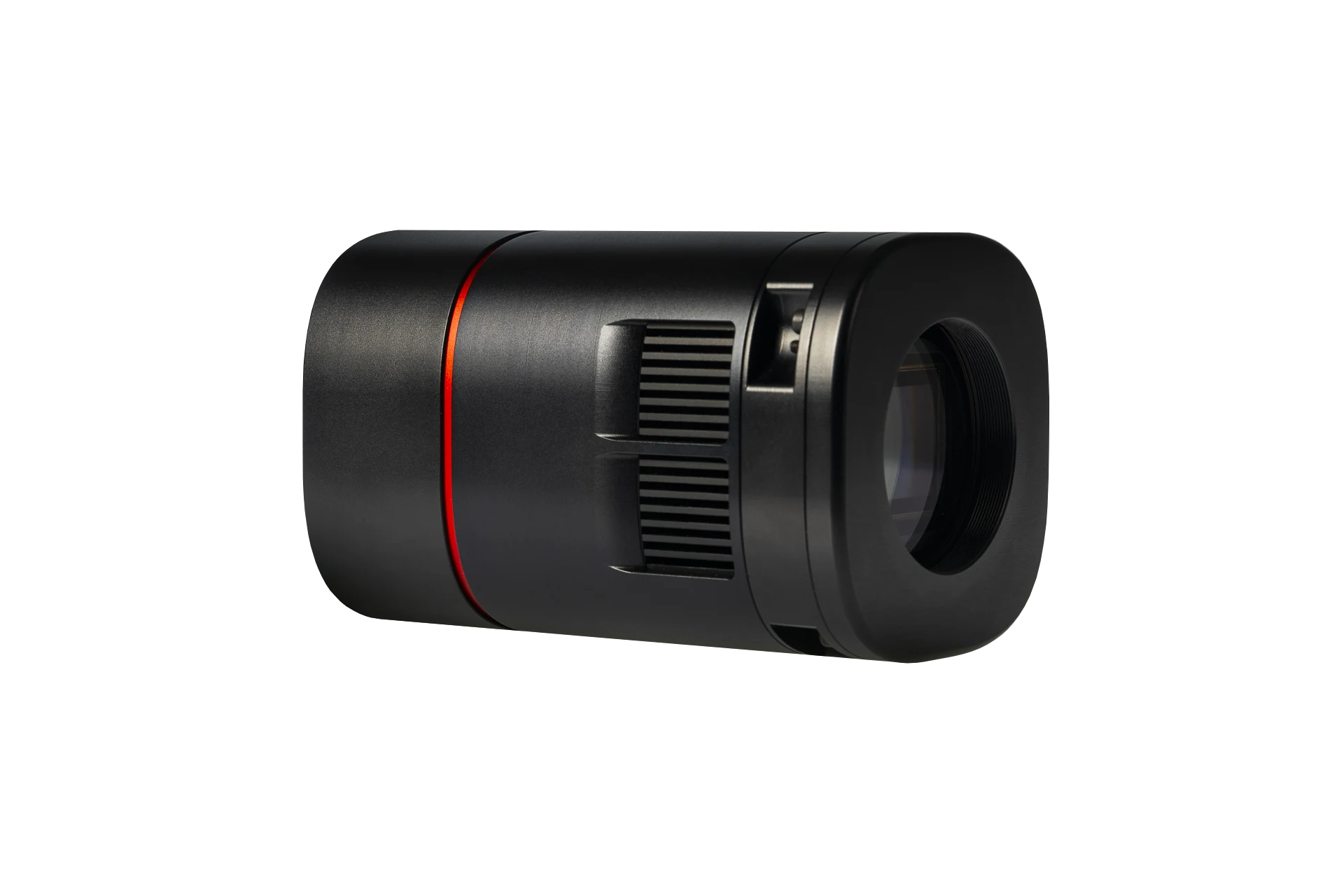

- Liquid-cooled version available
- Sony IMX571 APC-C CMOS sensor
- GPS synchronization
SYSTEM ARCHITECTURE
Designed
to scale.

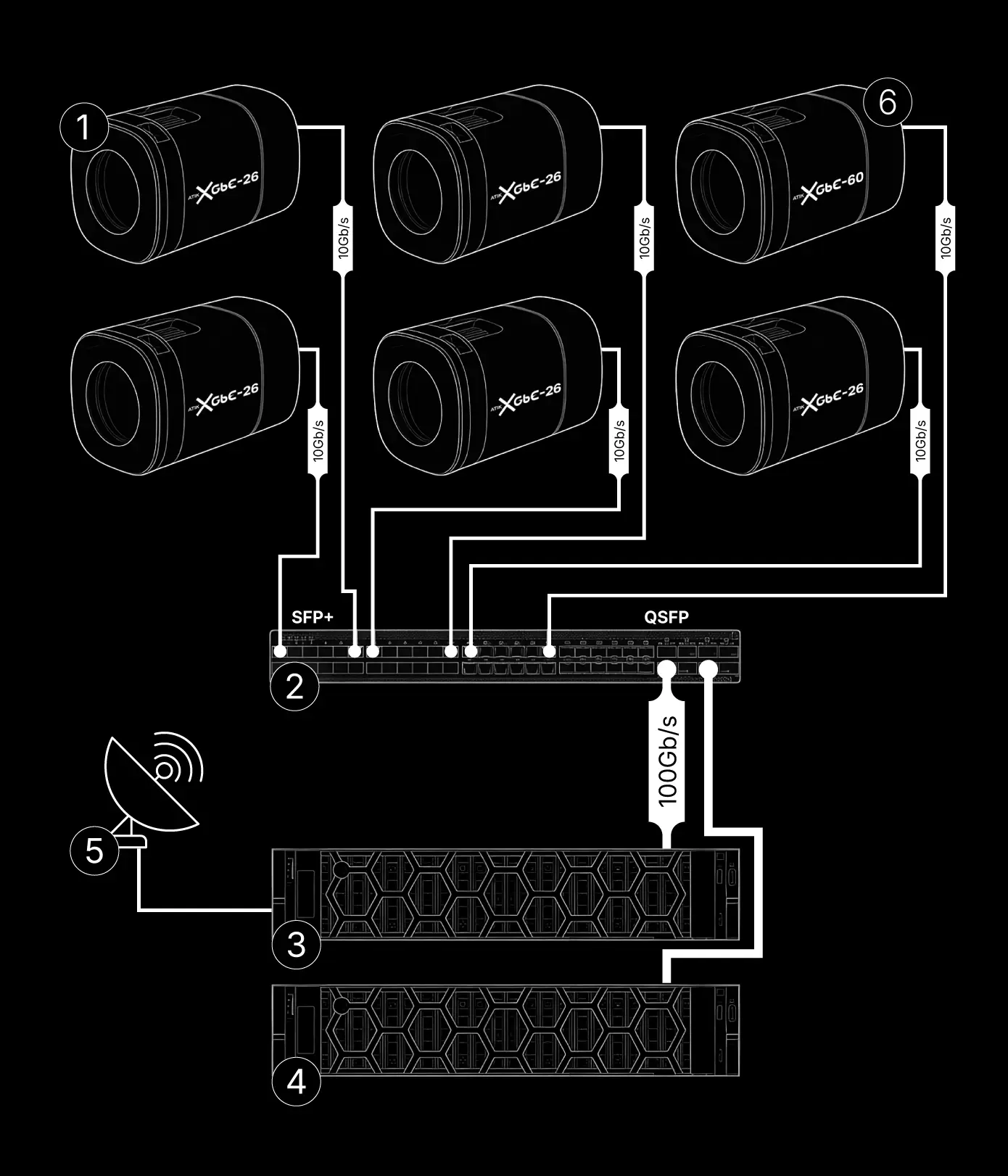

The XGbE-26 is engineered for maximum camera density per server. It operates within a coordinated cluster over a high-throughput Ethernet backbone, allowing each unit to stream independently over its own 10 Gb/s SFP+ link. This eliminates the traditional cabling limitations and bandwidth bottlenecks of USB or daisy-chained systems.
By generating the most efficient file sizes from its 26 MP sensor, an aggregating switch can consolidate a higher number of XGbE-26 units simultaneously. It forwards the traffic to the main acquisition server over a 100 Gb/s QSFP uplink, with a parallel path to a redundant backup server, allowing you to deploy a much larger, synchronized array of sensors under the same host infrastructure.
A GPS reference feeds precise timestamps and synchronization signals into the server, ensuring frame-level temporal alignment across every camera in the cluster.
For comprehensive situational awareness, the XGbE-26 can be seamlessly combined with the XGbE-60 within the same cluster architecture, allowing operators to mix full-frame wide-field coverage with high-density sensor grids under a single synchronized network.
More than a camera, a powerful imaging platform.
Designed for continuous, long-distance deployment, each XGbE-26 can be individually managed and scaled linearly. Features include integrated LED signaling for instant visual alerts and a liquid-cooled version designed specifically for environments where maintaining a strict sensor temperature is critical to data fidelity.
TALK TO AN ENGINEER
Planning a
multi-camera
deployment?
Tell us about your optical setup, network topology, and integration timeline: we’ll map the XGbE-26 to your requirements and walk you through the options.
TECHNICAL SPECIFICATIONS
Spec list
IMAGE SENSOR
Sony IMX571 CMOS (Mono/Color)
RESOLUTION
6248 x 4176
SENSOR DIAGONAL (EFFECTIVE PIXELS)
28.3 mm
(23.5 mm x 15.7 mm)
PIXEL SIZE
3.76 μm
FULL WELL CAPACITY
~51 000 e⁻
READ NOISE
~1.4 e⁻ (High Gain Mode)
~3.6 e⁻ (Low Gain Mode)
DARK CURRENT
~0.0008 e⁻/p/s at -15°C
COOLING CAPACITY
35ºC below ambient
[testing conditions: 25ºC; 50% humidity, non-condensing]
MOUNT TYPE
M54 x 0.75 mm
ADC
16 bit
BACK FOCUS DISTANCE
17.5 mm ±0.5 mm (9 mm ±0.5 without levelling plate)
READING MODE
Electronic Rolling Shutter
EXPOSURE RANGE
0.001s to 24 hours
FRAME RATE
4 FPS
POWER SUPPLY
12VDC 5A
