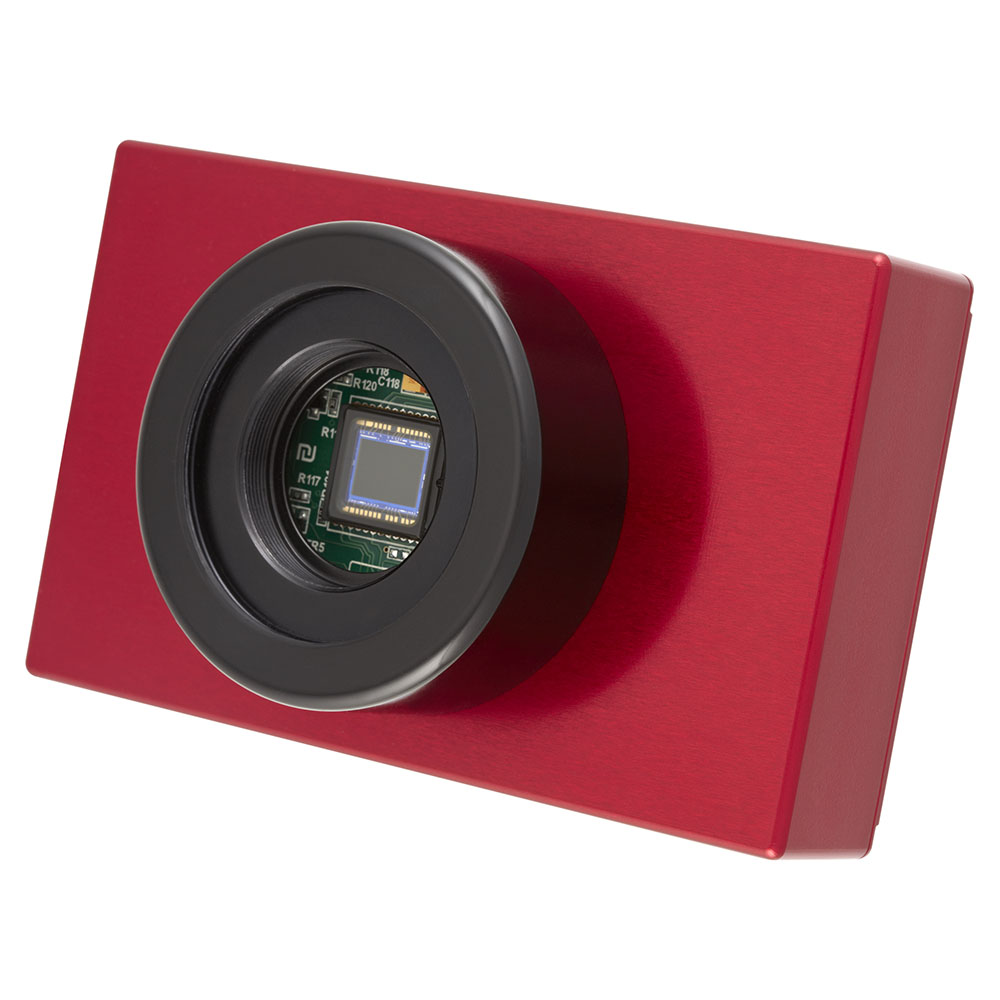

Infinity
- 1.4 MP Sony CCD sensor
- Compact easy integrate housing
- Easy USB interface
Overview
The Atik Infinity boasts both the speed and sensitivity required for this rewarding technique. Through our new, intuitive, in-house software, the Infinity brings the wonders of the deep sky to a screen in just seconds.
The Infinity features a Sony ICX825 sensor embedded with EXview HAD CCD II™ technology for outstanding sensitivity and Quantum Efficiency at a resolution suited to near real time viewing. The generous 6,45 µm pixel size is well-suited to a broad range of telescopes while the slim, rectangular design ensures the camera can clear the base on fork-mounted scopes. This makes the Infinity well-suited to a huge variety of setups, from those just starting out right through to the professional observatory and can also be used for OEM applications. It’s this innovation between form and function that’s earned the Atik Infinity a Sky and Telescope Hot Product Award 2017.
Specifications Download Datasheet
| Image Sensor | Sony ICX825 CCD sensor |
|---|---|
| Resolution | 1392 x 1040 |
| Pixel Pitch | 6.45 µm |
| Sensor Size | 8.98mm (horizontal) x 6.60mm (vertical) |
| Full Well | ~24,000e- |
| Read Noise | 6e- (typical) |
| Set Point Cooling at ambient of 20oC |
Passive cooling |
| Frame Rate | 2-3 fps (full frame) |
| Mount Type | M42 T2 |
| ADC | 16 bit |
| Backfocus Distance | 13mm |
| Reading Mode | Electronic shutter |
| Exposure Range | 1 ms - 2 minutes |
